Electrospindle (option) 10000 rpm
Numerical control CNC FANUC GE
Total power 18 Kw
Overall dimensions 1600x1400x2100 mm
Weight approx. 4000 Kg

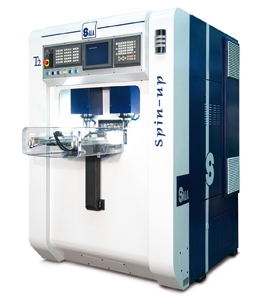

Double spindle CNC turning machine for turning of short pieces.
Compact and rigid machine frame including components and the electric cabinet.
• Reverse spindle and rapid hydraulic gripping system.
• Possibility of super precision turning with hydraulic bearing spindles.
• Electrospindles up to 10000 rpm. available.
• N° 1 toolholder slide, in option N° 2 indipendent toolholders slides.
• Full automatic cycle including loading - unloading system.

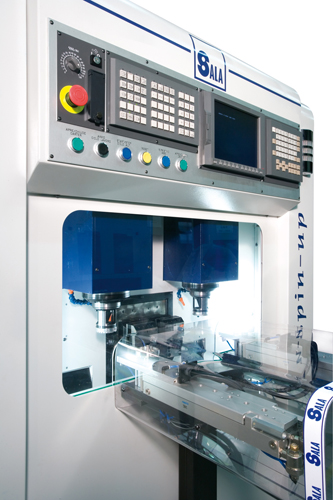

• 10” screen push button panel for editing and programming.
• PC - user interface by Windows XP operative system.
• Minimal lubrication system of the tools.
Options:
• electronic tools wear and brake control system.
• possibility to connect the machine with internet or modem, for remote assistance and diagnosis.
