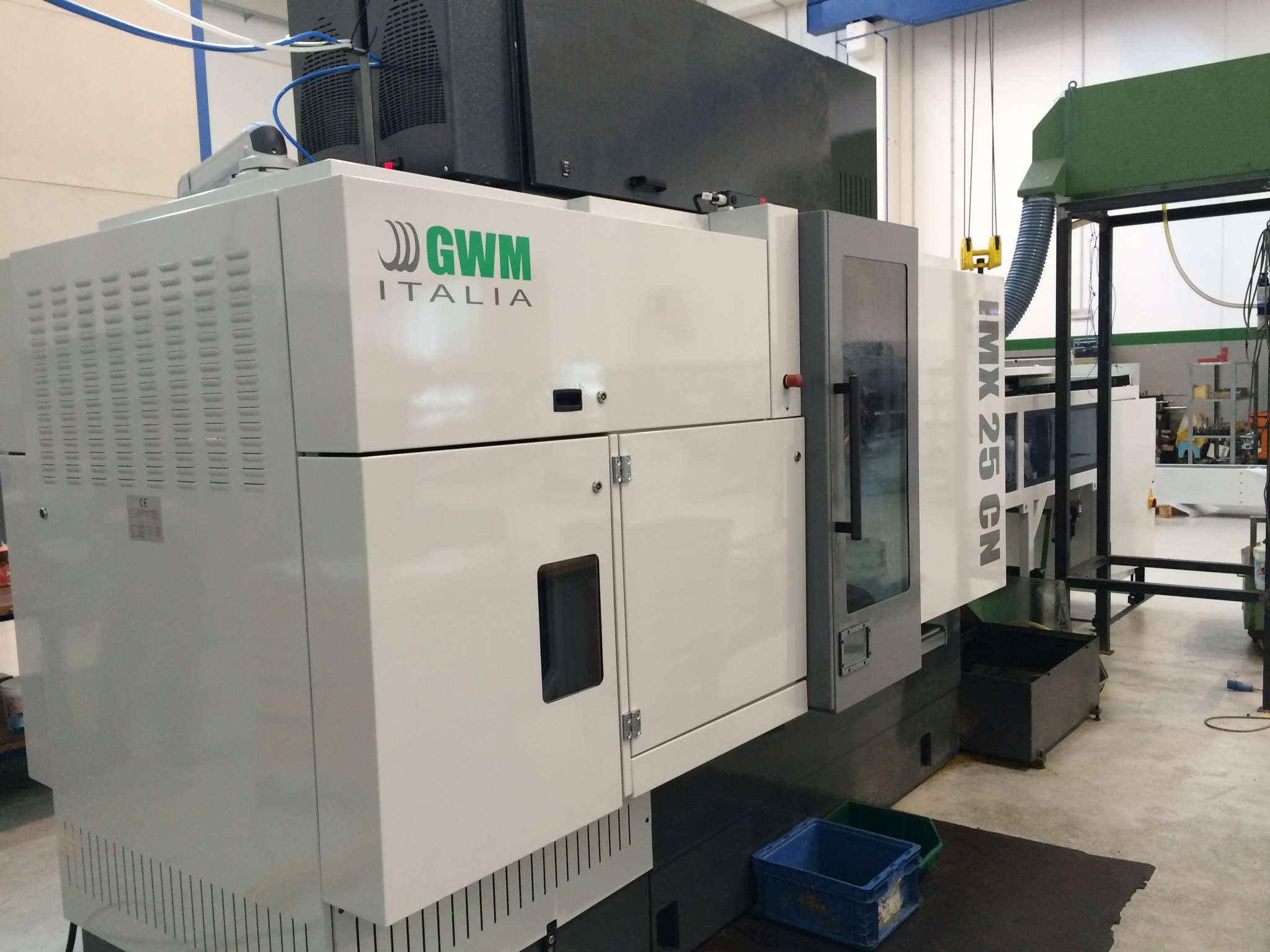

GWM IMX 25 CNC - Multispindle Turning Machine

Category	Multispindle Turning Machines
State	New
Brand	GWM
Model	IMX 25 CNC
Details	DATA SHEET Variable spindle speed (+/- 1 RPM) Variable feed speed (+/- 0,1 seconds) 6 controlled X axes and 6Çubuý controlled Z axes Bar capacity: 25 mm 32 mm with integrated bar loader Bar feed: 120 mm to be defined with integrated bar loader Spindle speed: 100-6000 RPM Cycle time: from 1 second (indexing included) from 0,6 seconds upon request, if back finishing operations are required Power: 52 kW Non-camshaft machine controlled by CNC Mitsubishi C70 Non-camshaft machine controlled by C70 Mitsubishi CNC Mechanical/hydraulic attachments: Pick up Pick up brake Tapping attachment Polygon milling attachment Thread milling attachment Single point threading attachment Broaching attachment Rotating slot milling attachment Rotating end spindle with internal coolant Rotating cross drilling attachment Spindle stop with hydraulic positioning system Pneumatic part chute (first part discarded) Bar feeder/loader ready Mechanical parts for CNC auxiliary motions Auxiliary slide with Z-axis interpolated with the X-axis (#1-2-4-5) for profiles and/or single point threading operations Pick up with C-axis (Z-axis as standard feature) CNC two-position back finishing slide with X-axis interpolated with the pick up Z- and C- axis Electronic positioning system on machines equipped with spindle stop mechanism
