IMX 25/32 CNC Multispindle Lathe

NewMultispindle Turning Machines

ID: 707

GWM IMX 25/32 CNC Multispindle Lathe - Multispindle Turning Machines - 1

Details





DATA SHEET



  • Variable spindle speed (+/- 1 RPM)
  • Variable feed speed (+/- 0,1 seconds)
  • 6 controlled X axes and 6 controlled Z axes

Bar capacity:


  • 32 mm
  • 35 mm with integrated bar loader


Bar feed:


  • 120 mm to be defined with integrated bar loader


Spindle speed:


  • 100-6000 RPM


Cycle time:


  • from 1 second (indexing included)
  • from 0,6 seconds upon request, if back finishing operations are required


Power:


  • 52 kW



Non-camshaft machine controlled by CNC Mitsubishi C70



Non-camshaft machine controlled by C70 Mitsubishi CNC
Mechanical/hydraulic attachments:

  • Pick up
  • Pick up brake
  • Tapping attachment
  • Polygon milling attachment
  • Thread milling attachment
  • Single point threading attachment
  • Broaching attachment
  • Rotating slot milling attachment
  • Rotating end spindle with internal coolant
  • Rotating cross drilling attachment
  • Spindle stop with hydraulic positioning system
  • Pneumatic part chute (first part discarded)
  • Bar feeder/loader ready

Mechanical parts for CNC auxiliary motions

  • Auxiliary slide with Z-axis interpolated with the X-axis (#1-2-4-5) for profiles and/or single point threading operations
  • Pick up with C-axis (Z-axis as standard feature)
  • CNC two-position back finishing slide with X-axis interpolated with the pick up Z- and C- axis
  • Electronic positioning system on machines equipped with spindle stop mechanism

Interested?

Contact us for pricing.

Quote via WhatsApp

Related Machines

Tornos Multideco 20/6

Tornos

Multideco 20/6

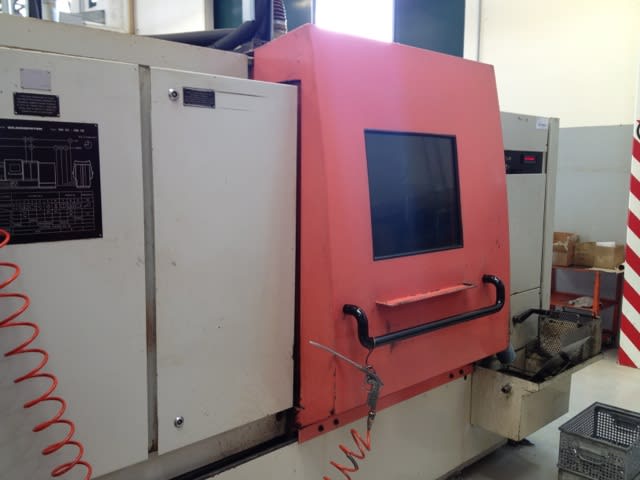

Gildemeister GM35 AC

Gildemeister

GM35 AC

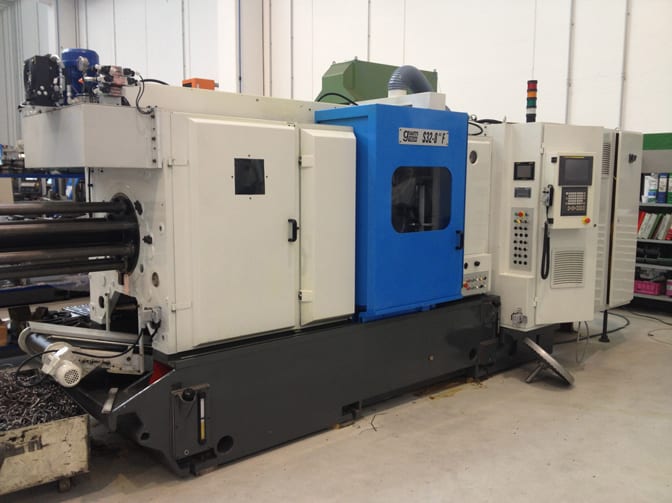

GWM S32-8ACF
