Max machining balls size
Ø 45 mm (at request Ø 80 mm)
Productivity up to 900 pcs/h
Total power 22 Kw
Overall dimensions 2500x2000x3000 mm
Weight approx. 6500 Kg

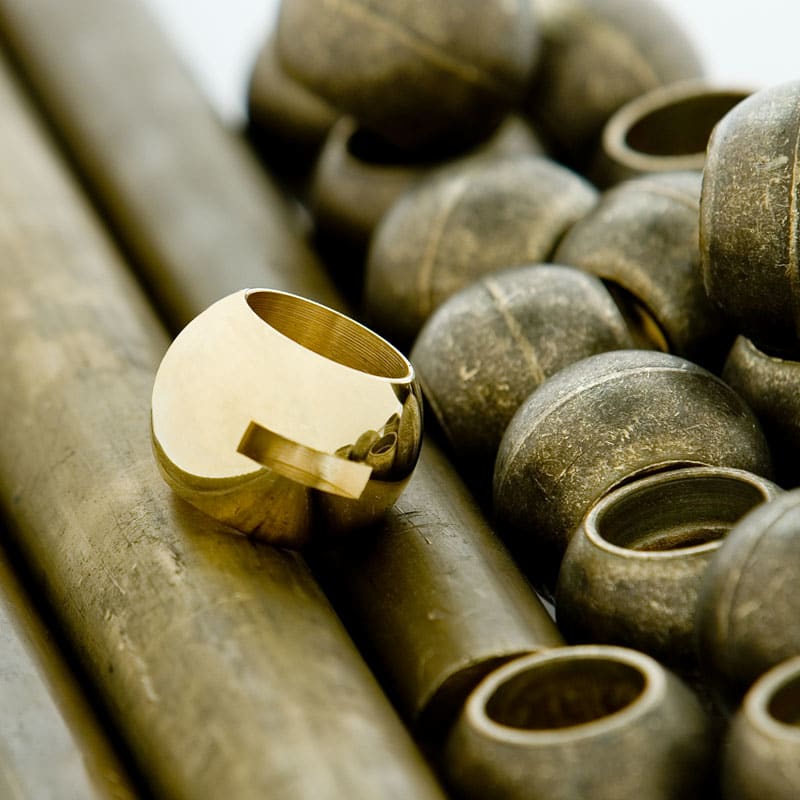

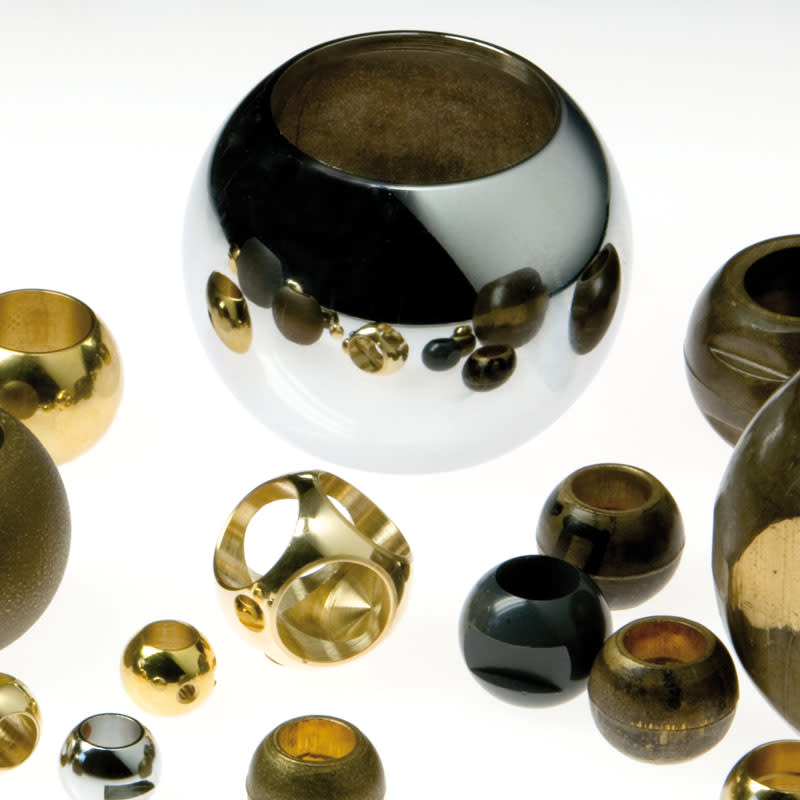

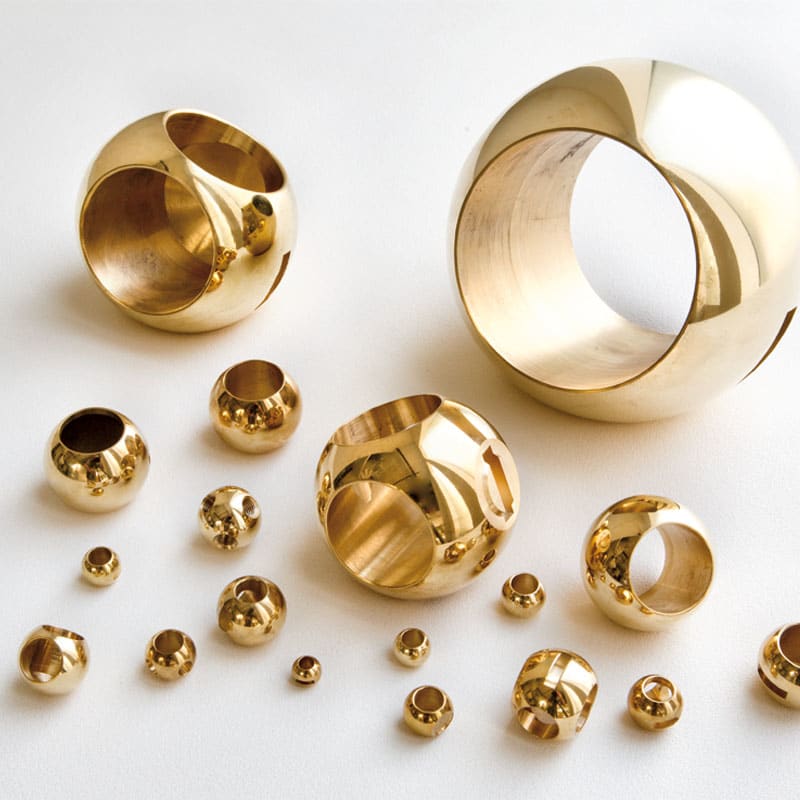

Special machine for the production of diamond finished balls for valves.
Numerical control CNC linear transfer machine.
Full automatic cycle including loading – unloading.
Machining operations:
• Boring / drilling
• Rough turning
• Diamond finishing
• Chamfering (numerical control CNC patented system)
• Drilling holes for three – four way valve
• Milling the slot

Options:
• electronic tools wear and brake control system

Blanks:
• forged balls
• billets
• bar

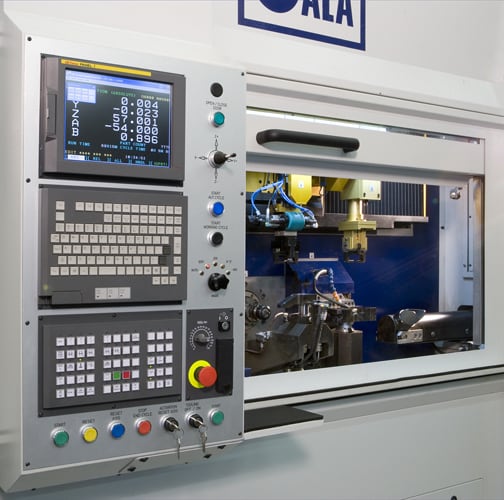

Integrated electric cabinet with numerical control CNC and Pc – user interface  by Windows XP operative system
Possibility to connect the machine with internet or modem, for remote assistance and diagnosis.
Minimal lubrication system of the tools
Full automatic cycle including: upper feeder, manipulator, belt conveyor for finished balls.
Chips conveyor system.
