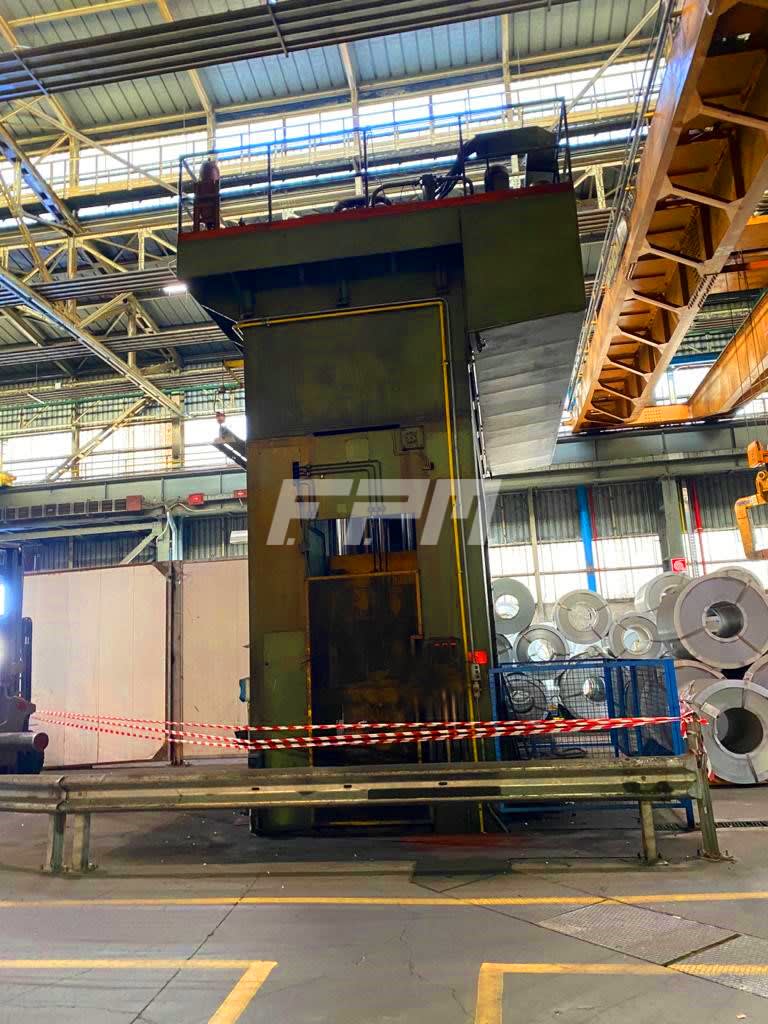

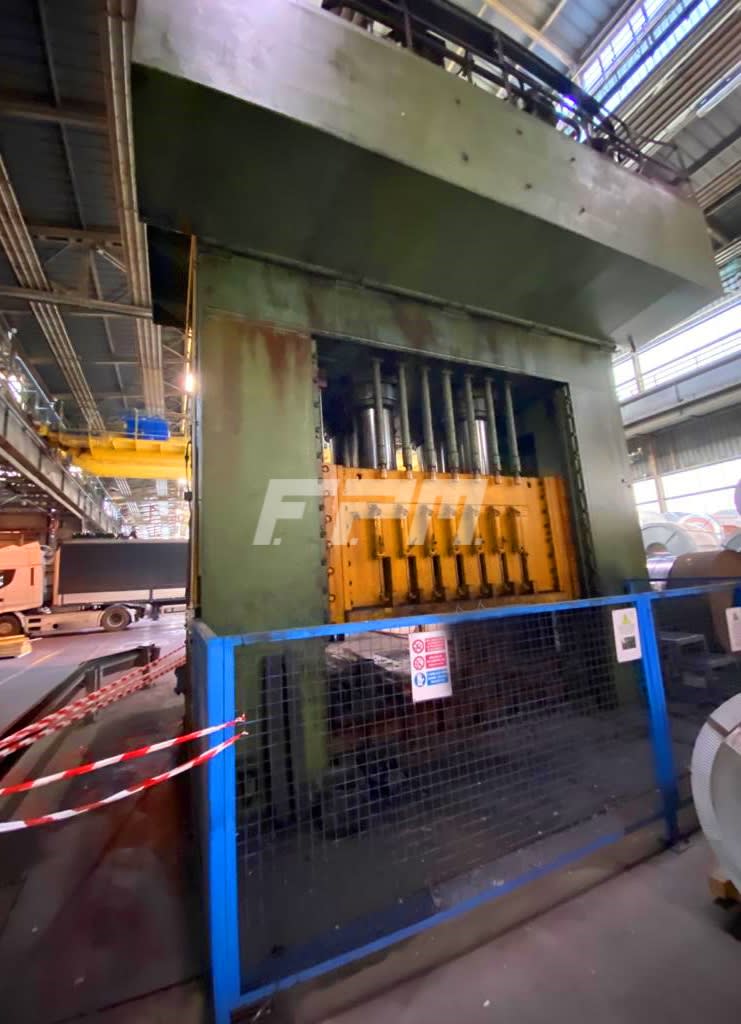

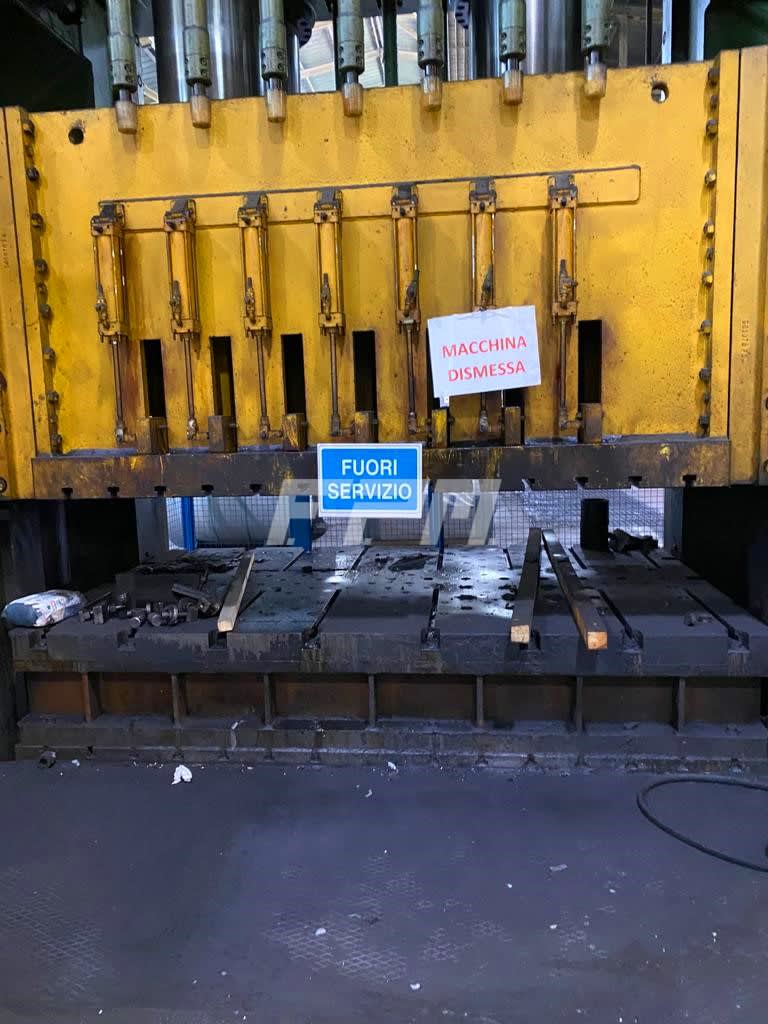

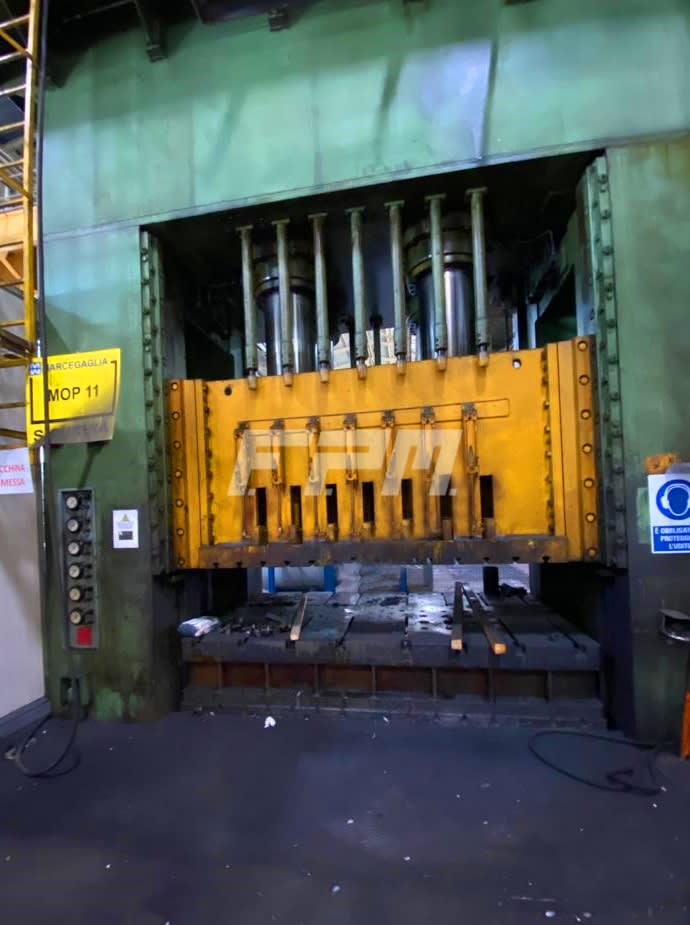

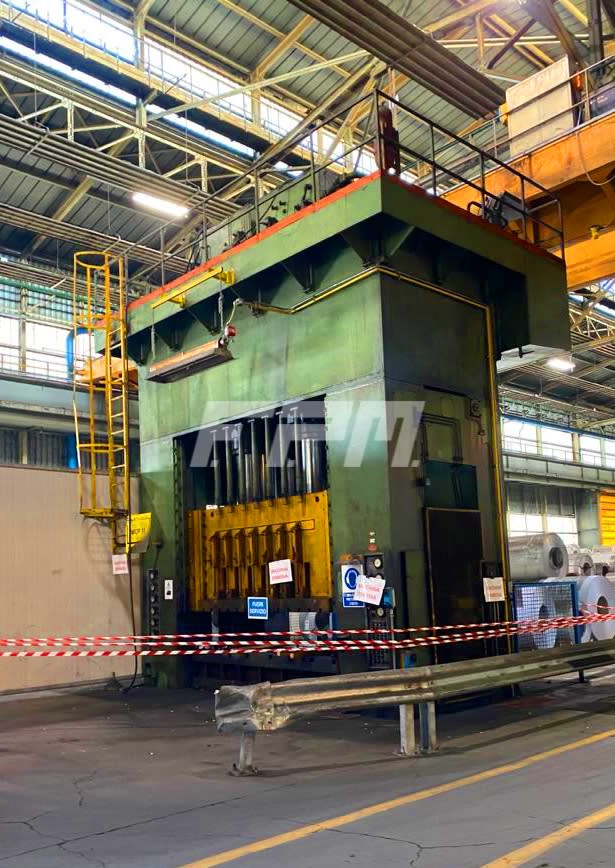

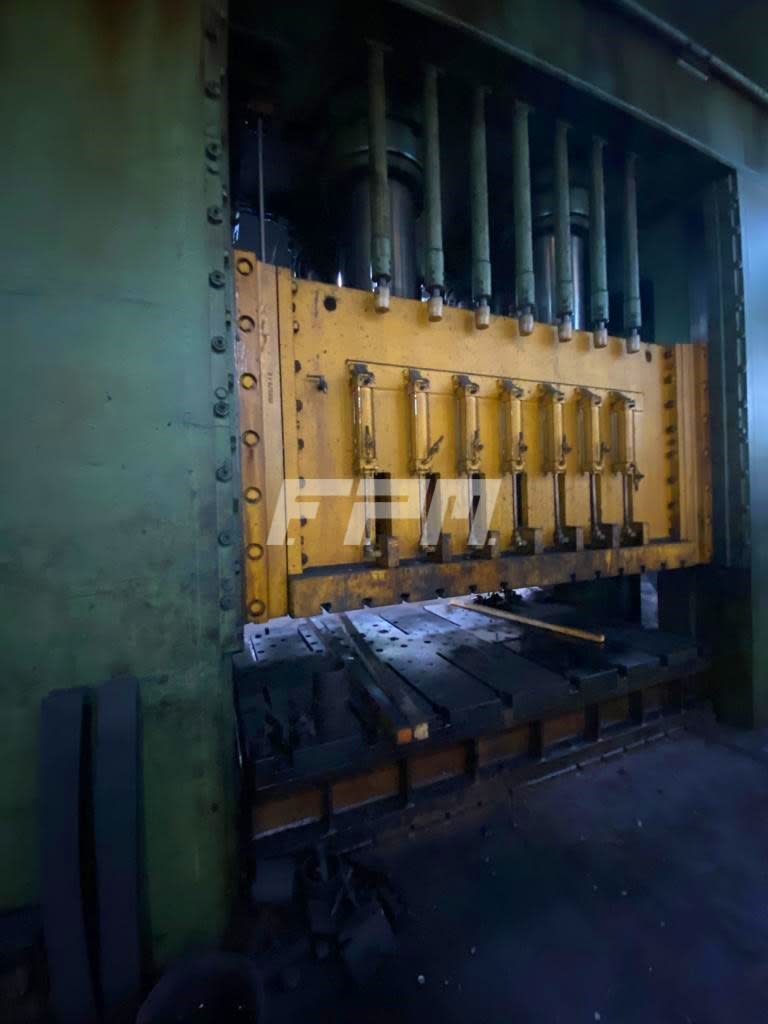

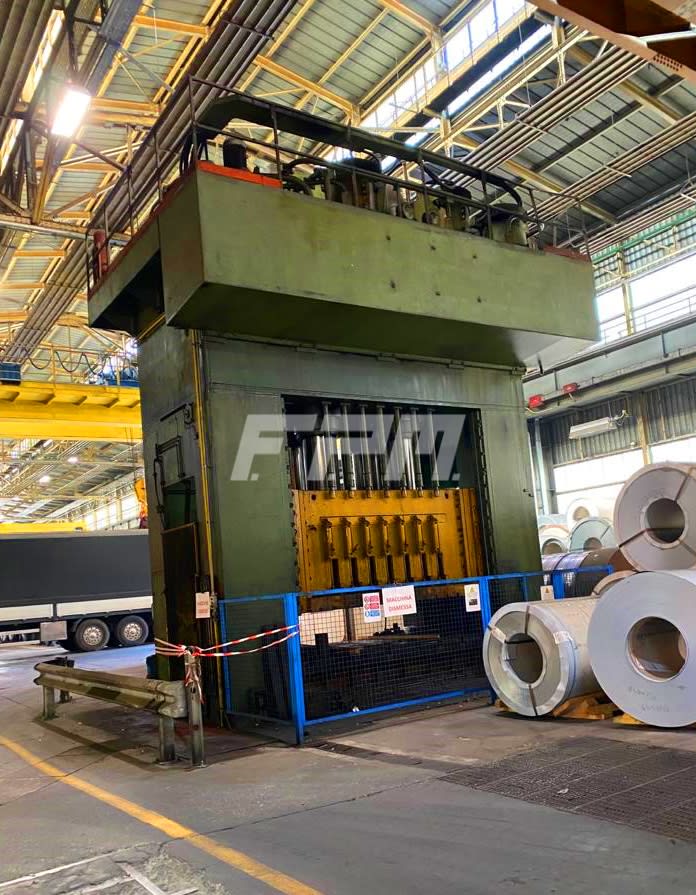

Emanuel DEA 2000 is a high-performance double-column hydraulic press designed for heavy-duty metal forming and sheet metal processing operations. With a primary capacity of 2000 tons and a 640-ton cushion (blank holder) capacity, it ensures superior precision in the most demanding deep drawing and molding tasks. Its large bolster area (3200x2000 mm) allows for the processing of large-scale components.

TECHNICAL SPECIFICATIONS

General Information

• Brand: Emanuel
• Model: DEA 2000/3200x2000-450
• Type: Double Column Hydraulic Press (Double Action)
• Status: Used / Refurbished

Capacity and Performance

• Nominal Capacity: 2,000 Ton
• Blank Holder (Cushion) Power: 640 Ton
• Slide Return Force: 70 Ton
• Installed Power: 330 kW (3 x 150)

Speeds

• Approach Speed: 450 mm/s
• Full Power Working Speed: 13 mm/s
• Half Power Working Speed: 23 mm/s
• Slide Return Speed: 280 mm/s
• Cushion Return Speed: 100 mm/s

Dimensions

• Table Dimensions: 3,200 x 2,000 mm
• Blank Holder Plate Dimensions: 2,850 x 1,650 mm
• Slide Stroke: 1,100 mm
• Cushion Stroke: 500 mm
• Max. Daylight: 2,200 mm
• Lateral Opening: 800 mm

Physical Dimensions

• Height Above Ground: 7,500 mm
• Depth Below Ground: 2,500 mm
• Work Table Height (From floor): 300 mm
• Upper Front Width: 6,000 mm
• Upper Side Width: 3,800 mm
