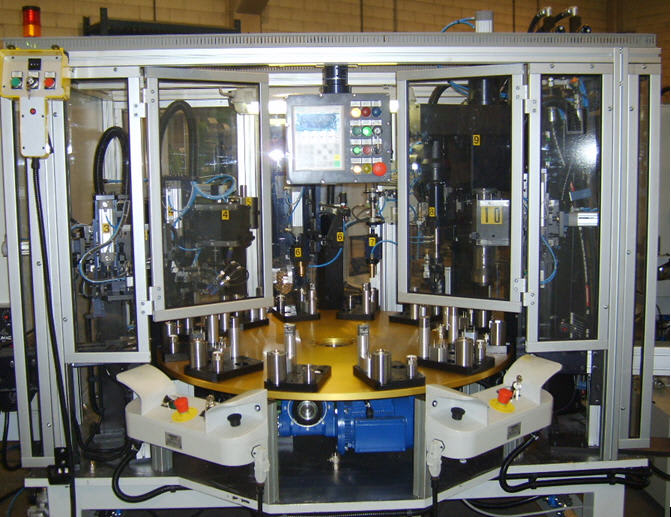

M.T. ZANETTI Assembling Machine for Ball Valves

Details

MODEL:	SEMIAUTOMATIC MACHINE FOR ASSEMBLING BALL VALVES ½” – ¾” – 1”
AIR POWER :	7 BAR
BESLEME:	380 V 50-60 HZ – 3P + T + N
TENSION:	24 VDC
POWER :	8,5 Kw.
FUNCTIONING:	CNC AND PNEUMATIC
OPERATION:	PLC
OPERATOR NUMBER:	2
NOISINESS:	78 dcb
HOUR PRODUCTION :	700/800
WEIGHT :	1.800 Kg.
DIMENSIONS:	2.500X1.850X2.100 (h)

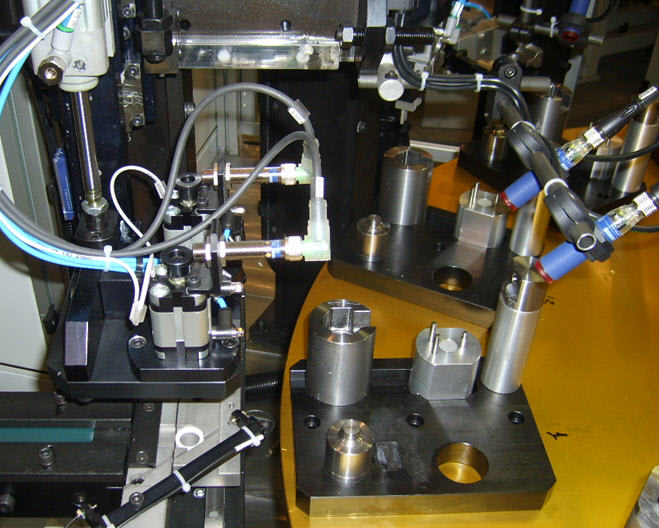

Assembling Cycle:

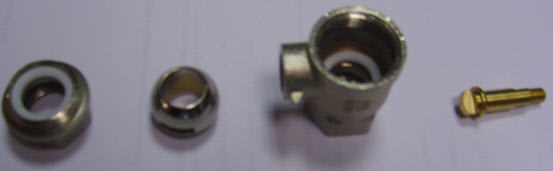

· St.11: manual loading of the following pieces:

Loading of the ball on layer 2

Loading of sleeve on layer 4

· St.12: free
· St.1: manual loading of the following pieces:

Loading of the body on layer 3

Loading of rod on layer 1

· St.2: free

· St.3: automatic assembling in contemporary of the teflon gasket on the body and on the sleeve

· St.4: picking of the rod from layer 1 and loading into the body on layer 3

· St.5: checking of the rod and turning of the sleve

· St.6: picking of the ball from layer 2 and loading into the body on layer 3

· St.7: checking and lubricating of the ball

· St.8: picking of the sleeve from layer 4 and pre-screwing on the body with glue’s dosaging

· St.9: hydraulic screwing of the sleeve on the body with electronic control of the torque

· St.10: automatic unloading of the pieces
