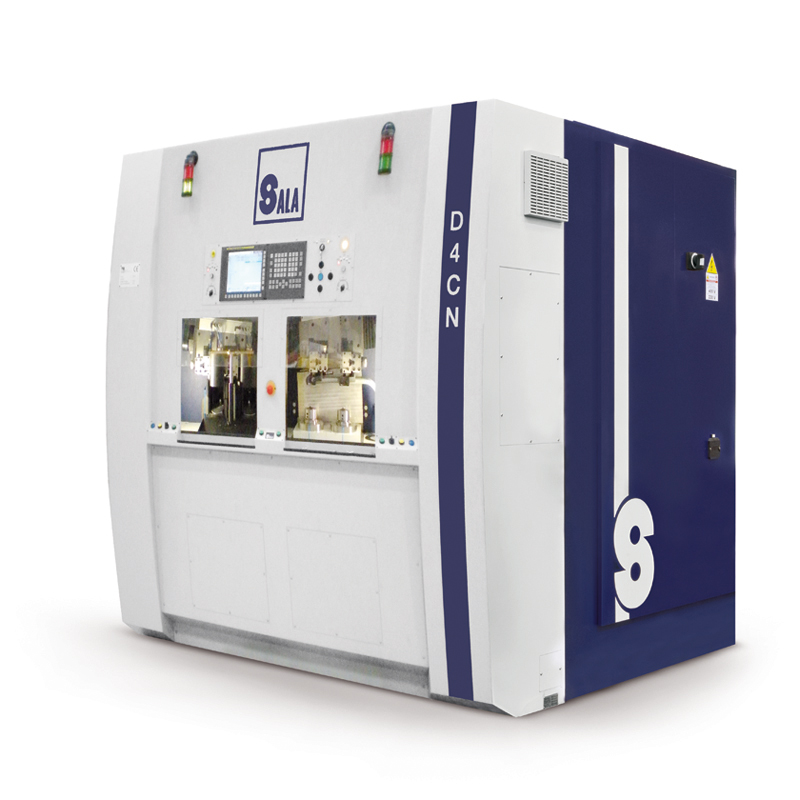

SALA D4CN MULTISPINDLE DIAMOND FINISHING MACHINE - High Precision CNC Machine


SALA D4CN MULTISPINDLE DIAMOND FINISHING MACHINE High Precision CNC Machines
SALA D4CN MULTISPINDLE DIAMOND FINISHING MACHINE High Precision CNC Machines
SALA D4CN MULTISPINDLE DIAMOND FINISHING MACHINE High Precision CNC Machines
SALA D4CN MULTISPINDLE DIAMOND FINISHING MACHINE High Precision CNC Machines

Click pictures to enlarge.


Go Back

Technical Specifications
CategoryHigh Precision CNC Machines
StateNew
BrandSALA
ModelD4CN MULTISPINDLE DIAMOND FINISHING MACHINE
Production Capacity800 items/hour
Details

Total power 31 Kw
Overall dimensions 2300x1800x2300 mm
Weight approx. 4500 Kg

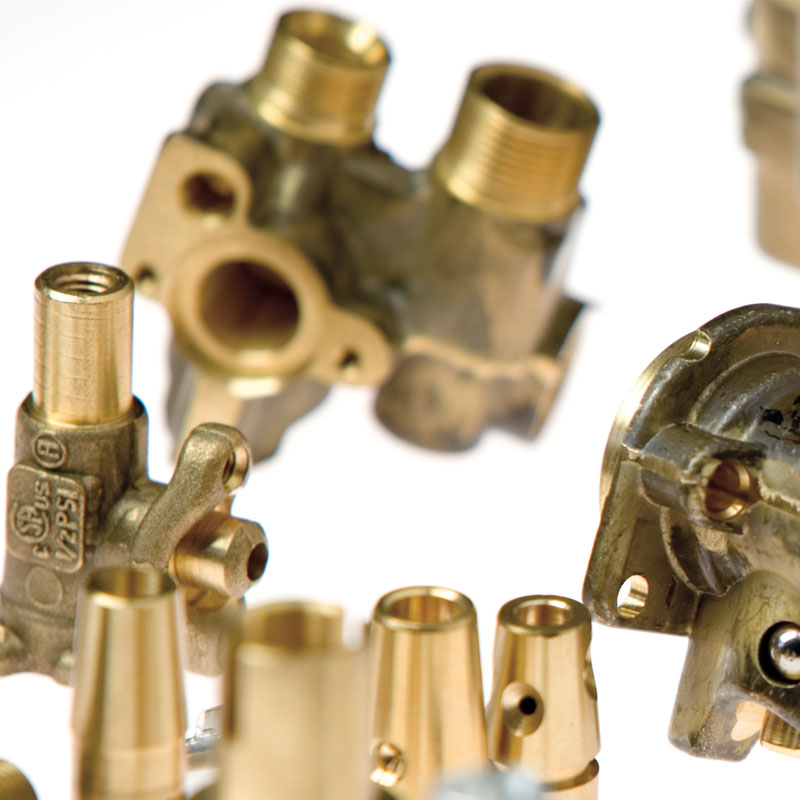

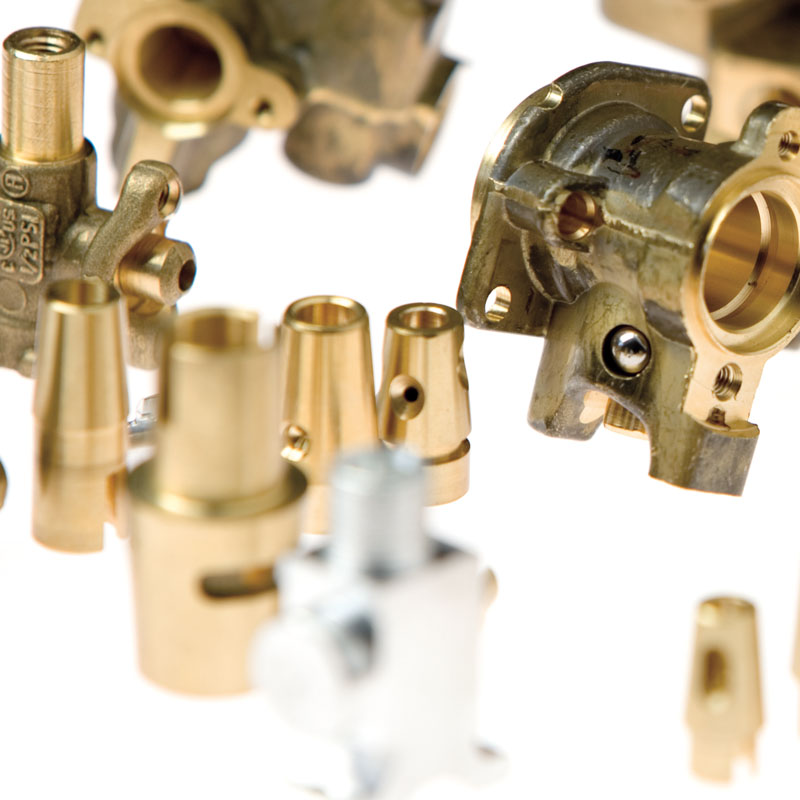

CNC four vertical spindles fine turning machine specially designed for high precision turning and great production efficiency (suitable for conical finishing  for gas valves).
• N° 2 indipendent toolholders,
• N° 4 CNC axis with linear and circular interpolation,
• N° 4 vertical spindles with high precision bearings, or special hydraulic bearings for high accuracy (precision <1µm),
• N° 4 indipendent brushless motors for spindle drive,
• Push button panel for editing and programming, with 9” screen display,
• Minimal lubrication system of the tools,
• Chips conveyor system.
